Features
Simultaneous Smooth writing Multi – Touch
10 point touch support detects multiple touch points, enhancing the possibility of collaborative work. The screens also provide a precise and user friendly writing experience with its smooth surface.
HDR10 & 4K HDMI @60Hz
Displays supporting HDR10 allows HDR based content to be shown, giving a brighter and more dynamic picture. This is further enhanced due to the support of 4K 60Hz, allowing ultra sharp, smooth Video content to be presented.

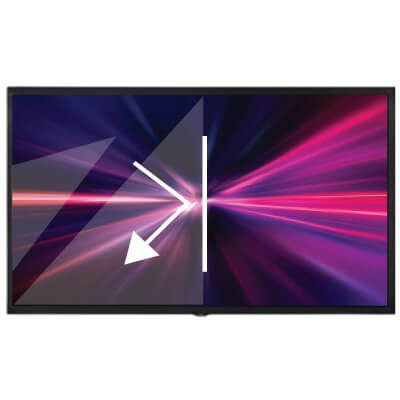

Anti Glare Tempered Glass
Prevents light reflection and provides smooth touch performance with anti glare technology. Robust design with toughened glass material to avoid any damage to the screen.
Collaborate, Annotate with Oktopus
Collaborate: View lessons, respond, share annotations, and take notes using any tablet or laptop. Annotate: Works over browser content & existing applications. Poll: Pose questions and gain immediate participant feedback, displaying results instantly.
Panel
Backlight Type
Direct-Type LED
Brightness (typical)
400 cd/m²
Native Resolution
UHD: 3840 x 2160 – HDR10
Contrast Ratio (typical)
1300:1
Dynamic Contrast Ratio
40000:1
Panel Life Time (Min.)
30000 Hr
Response Time (typical)
6 ms
Active Area (H x V)
1210 x 681 mm
Viewing Angle
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value
16.7 M (8-bit)
Front Type
Black Super Narrow Bezel
Built-in System
Mainboard Model
17MB135VS
Monitor Connectivity
Video Input
4xHDMI2.0, 2xUSB2.0, USB2.0(Internal)
Audio Output
Headphone, Optic SPDIF
External Control
RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
Touch Interactivity
Type of Touch Technology
Infrared (IR) Technology
Continuous Touch Points
10 Points
Sensitivity
Any touch with finger, gloved hand or pointer
Connectivity
HID, TUIO, Flash
Compatibility
Windows®7, Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Android
Orientation
Landscape support
Reporting Rate
Up to 450 fps
Glass Type
Anti Glared (AG), 4mm Tempered
Supply Voltage
DC 5V +/- 5%
Touch Accuracy
+/-2mm (over 90% area)
Touch Durability
Unlimited
HID Compatibility
Yes USB
Object Sizes for Touch
5mm
Mechanical
Product Dimensions (WxDxH)
1280 x 123 x 751 mm
Package Dimensions (WxDxH)
1480 x 265 x 930 mm
Vesa Mounting
400 x 200 mm
Bezel Width
B:34 | T:34 | L/R:34 mm
Environmental Conditions
Operating Temperature
+40°C / 0°C
Power
Power Supply
110 VAC – 240 VAC
Power Consumption
Features
Main Features
USB-Autoplay, Auto-switch on Failover, Control Button Lock, HDMI Wake-Up
Mechanical Features
IR Touch, Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying handles, Detachable logo positioning, Cable Holders
Optional Features
OPS Compliance
Accessory
Standard
QSG, IB, Power Cord, Remote Control, RC Battery, Mounting Kit, Extension Brackets, IR Extender Cable
Certification
* Specifications are subject to change without prior notice.
