Specifications
OPS – General Features
CPU
4 core 14000dmips@1.5GHz
Chipset
MSO9380AM SoC 512KB L2 Cache
Resolution Support
Ultra HD Max. 4096 x 2160 @60Hz
GPU
Mali450mp2
Memory
2 GB DDR4
Network
LAN: 10/100 Mbps WLAN: 802.11 a/c Bluetooth 4.0 4G (optional)
Storage
8 GB EMMC SD Card: Up to 1TB

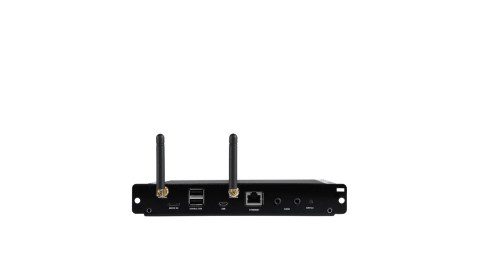

I/O Ports
1 x RJ45 2 x USB2.0 1 x micro USB 1 x micro SIM 1 x micro SD Card Slot 1 x Headphone 3.5 mm jack 1 x Microphone 3.5 mm jack 2 x WiFi antenna connector 1 x Power button
Operating System
Android 7.1.2, Kernel 3.10.86
Mechanical
Product Dimensions (WxDxH)
180 x 119 x 30 mm
Package Dimensions (WxDxH)
237 x 180 x 59 mm
Product Weight
0.95 kg
Package Weight
1.25 kg
Features
Main Features
Android Launcher, Whiteboard App, ScreenSharing App, Screen Lock
* Specifications are subject to change without prior notice.
